2" Shell Mill With 4 HSS TIN Coated Inserts

I might be looking right at the answer and just not seeing it in the software but, I'm not really sure how I'd enter or select this particular type of cutting tool. Filling out all of the other text fields is fairly simple in order to get the Feeds and Speeds I'm looking for but without entering the specific cutting tool correctly it's hard to proceed any further and expect the software to generate the correct cutting calculation. How would you go about entering this type of tool as your selected cutting tool. I'm sure the answer is a simple one; I just don't know what the answer is. I've filled in the pertinent text fields using, 2" as my diameter and four flutes as the number of flutes and HSS Tin coated insers as the material that the cutter is made of but I can tell by looking at the numbers being generated that my mill will bog down if I use them. I tried running it using those ultra low feeds and speeds and it did in fact bog down to a stall. I've also actually tried the trial and error method of tweaking my Feeds and Speeds and I can get it to work but I'd feel more comfortable allowing HSMAdvisor do its work by correctly entering the description of the Shell Mill I'm using. As it is, the numbers I originally generated by entering a 2", 4FL HSS TIN Coated-Inserted end mill are not even close to the numbers I had to tweak it to in order to give me a half way decent cut or surface finish. I know this software will do better because it does it all the time when I use conventional end mills. I just don't think the tool description I'm using is correct for the software to understand. Any suggestions?

Answers:
cant leave messages here
Pages:(1) [1]
avatar

MetalShavings

January 18, 2018, 9:23 pm

I think it's a Shell=Mill. Some folks refer to them as a Face-Mill. I don't really know the difference. I don't know if it really matters in this instance because whether it's one or the other, I'm still not sure how to correctly enter it as my cutting tool in the appropriate text fields. MetalShavings

avatar

Eldar Gerfanov (Admin)

January 19, 2018, 9:21 am
Updated by: Eldar Gerfanov (Admin)January 19, 2018, 9:23 am

Quote:"METALSHAVINGS"
I think it's a Shell=Mill. Some folks refer to them as a Face-Mill. I don't really know the difference. I don't know if it really matters in this instance because whether it's one or the other, I'm still not sure how to correctly enter it as my cutting tool in the appropriate text fields. MetalShavings
Hello, You wrote such a long post, but gave me so little information... Are you sure it is HSS inserts? I have not seen any HSS inserts in my life. Perhaps you are talking about a solid HSS shell mill? OR carbide Inserts? It does give very low spindle speeds because of HSS tool material choice. And machines these days do not like high torque at low RPM Also i don't know what machine you are running it on. Then what Material are you cutting? Aluminum or steel? Remember that HSMAdvisor is not set up by default to give good surface finish. Its primary task is to help remove material. To get good finish you need to be cutting at about 0.002" per tooth and 150% speed. If you asked a question like:
Quote:"METALSHAVINGS"
I have a 2" Shell Mill With 4 HSS TIN Coated Inserts. (better link a picture of similar tool) My machine is whatever_machine_HP_name I am trying to machine total_depth inches off the whatever_material part and then finish with the same tool.

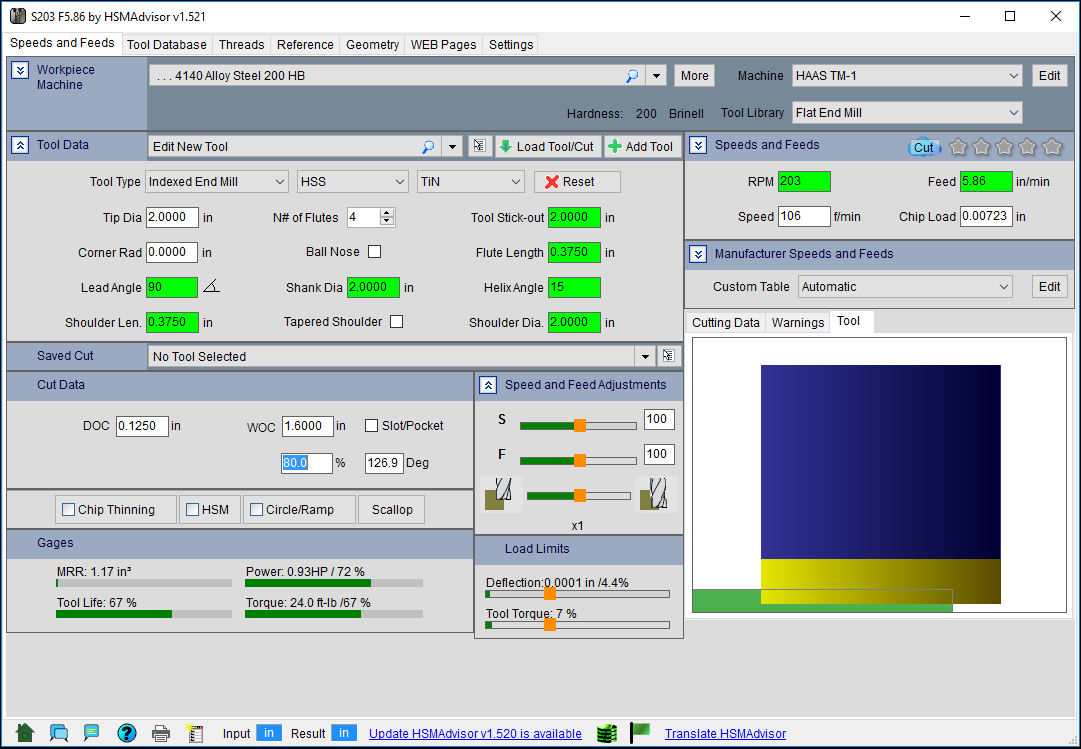

Then i would have been able to help you better. Please check the screenshot below. Right now I was just trying to guess a low of stuff. Regards :ernaehrung004:

Capture_5456565231145.PNG Capture_5456565231145.PNG
avatar

MetalShavings

January 19, 2018, 6:07 pm

Hi Eldar: I finally figured it out by manually tweaking my feeds and speeds. I checked out the screen shot and noticed that the numbers being generated were for a Haas Mill. Sorry about the lack of information on my part. My machine is just a little Tormach 770. It has no where near the power of the Haas; or just about any other milling machine for that matter. I was using this Shell-Mill or whatever it's called to face off some 1018 steel. Once I dialed in the right feeds and speeds it worked out real well. I think you are correct in that these must be Tin coated carbide inserts; not HSS inserts. In my search for the correct cutting recipe I managed to dull the crap out of the initial cutting tips so once I turned them around to some new tips it seemed to cut like butter with a minimum of trouble. All I wanted to do was to even out the uneven spots on the face of my stock so I used 2400 RPM with 3.0 on a very shallow depth of cut. It worked out perfect. The HSMAdvisor software is excellent for this kind of stuff but there's no substitute for experience, which I don't have enough of. Thanks for your post. Next time I'll make it a point to include a little more information. MetalShavings.
