By Mahkie

June 3, 2016, 8:12 am

F/S algorithm problem?

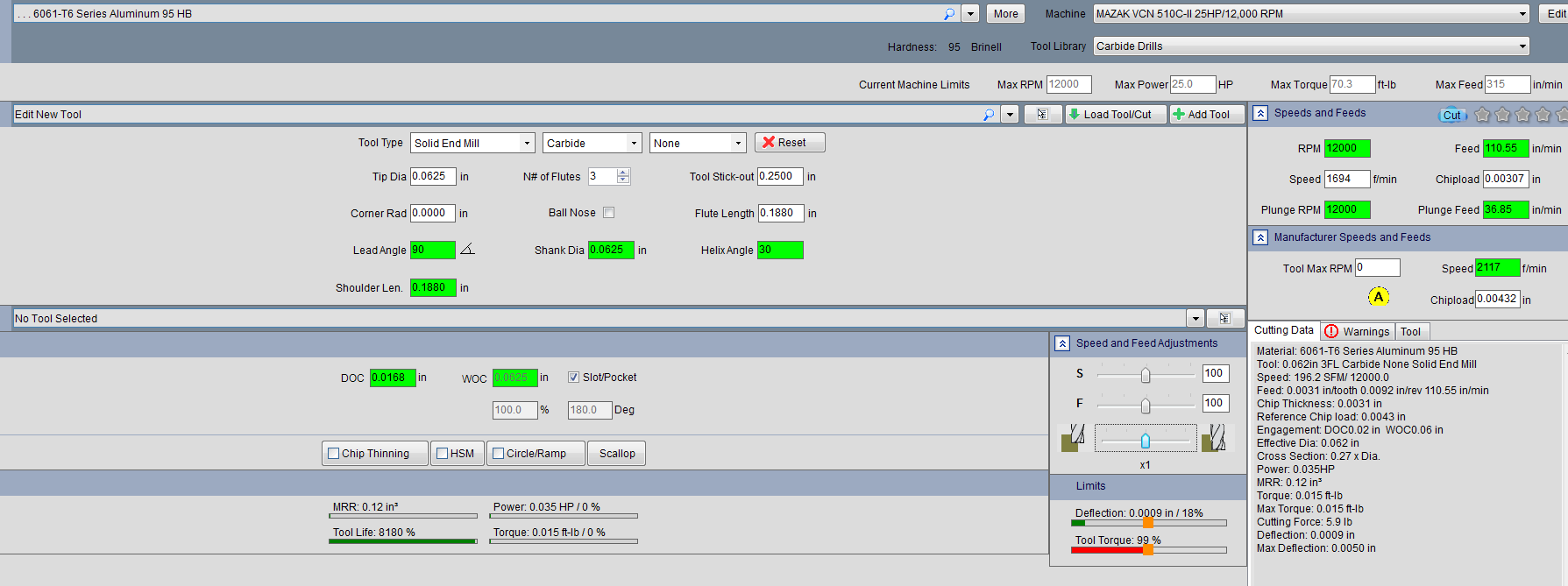

I'm having it tell me that a 3-flute 1/16" EM can full slot with a DOC of .0168 at a chip load of .003, something is seems off. I've included a screen shot in case the way parameters work in the newest version are drastically different.

Untitled3.png Untitled3.png
Answers:
cant leave messages here
Pages:(1) [1]
avatar

Eldar Gerfanov (Admin)

June 3, 2016, 8:20 am

Hi,
You have Manufacturer Chipload set there. This is the reason it does that.
Reset the manufacturer Chipload to default and it will be OK

Regards.

avatar

Blue_Chips

June 4, 2016, 8:47 am

Reset the manufacturer Chipload to default and it will be OK


Where/how is that done Eldar?

avatar

Eldar Gerfanov (Admin)

June 4, 2016, 10:22 am
Updated by: Eldar Gerfanov (Admin)June 4, 2016, 10:27 am

Quote:"BLUE_CHIPS"
Reset the manufacturer Chipload to default and it will be OK


Where/how is that done Eldar?


Just expand the Manufacturer Speeds and Feeds panel and hit on the Chipload or SFM label to reset the corresponding field.

Edit: Why this happened is because some speeds and feeds algorithms were changed.
And when you load a Cut from the DB, HSMAdvisor will consider those OLD speeds and feeds custom.

Regards

avatar

Mahkie

June 11, 2016, 12:20 pm

That did the trick, thank you!
