By Blue_Chips

March 23, 2013, 9:39 am
Updated by: Eldar Gerfanov (Admin) April 8, 2013, 10:47 pm

RPM not sticking between tooling [resolved]

Just noticed the RPM is also reverting to the default 10k between tool selections as well.

cant leave messages here
Pages:(1) [1]

Eldar Gerfanov (Admin)

March 23, 2013, 11:37 am
Updated by: Eldar Gerfanov (Admin)March 23, 2013, 11:43 am

Tools are loaded as they saved.
In other words when loading tool from the tool library it will bring back the machine settings it was originally saved with.
That includes Machine, MaxRPM and basically everything inside "machine limits" group.
You can control what gets overwritten when a tool/cut is loaded though.

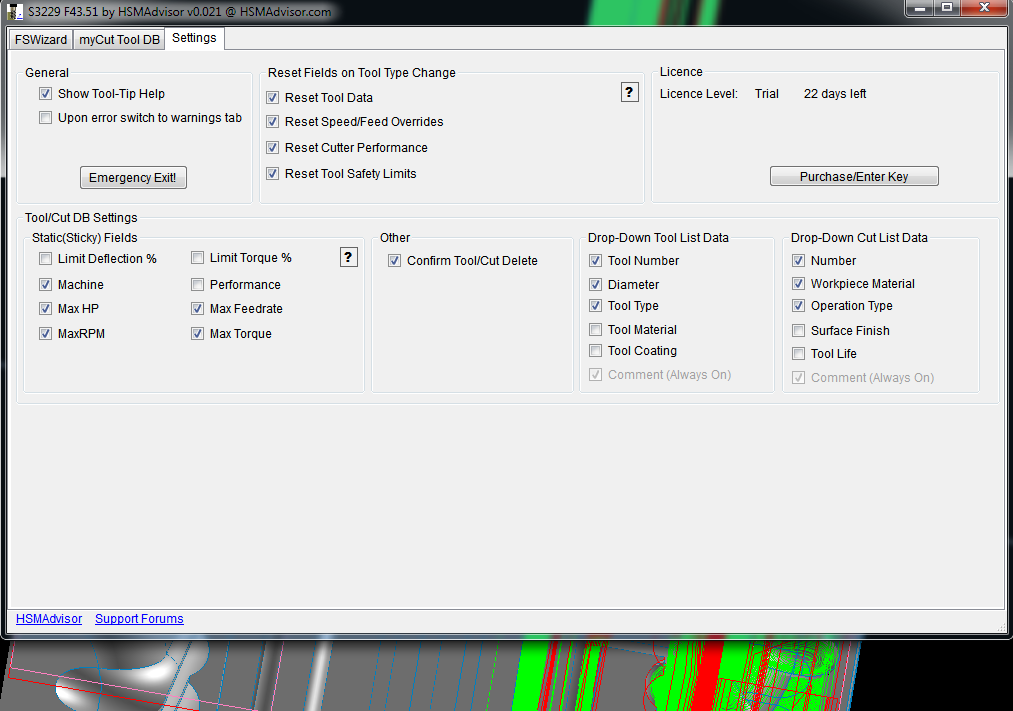

If you go to Settings tap, you will see Sticky fields settings group.
Check which fields you want to remain constant between tools.
Say of you want to just load saved tools and want machine settings to remain the same, check Machine, maxrpm, maxfeed,maxtorque check boxes
What and how gets saved is a big issue for many people, so i wanted to give users every possible option to control that.

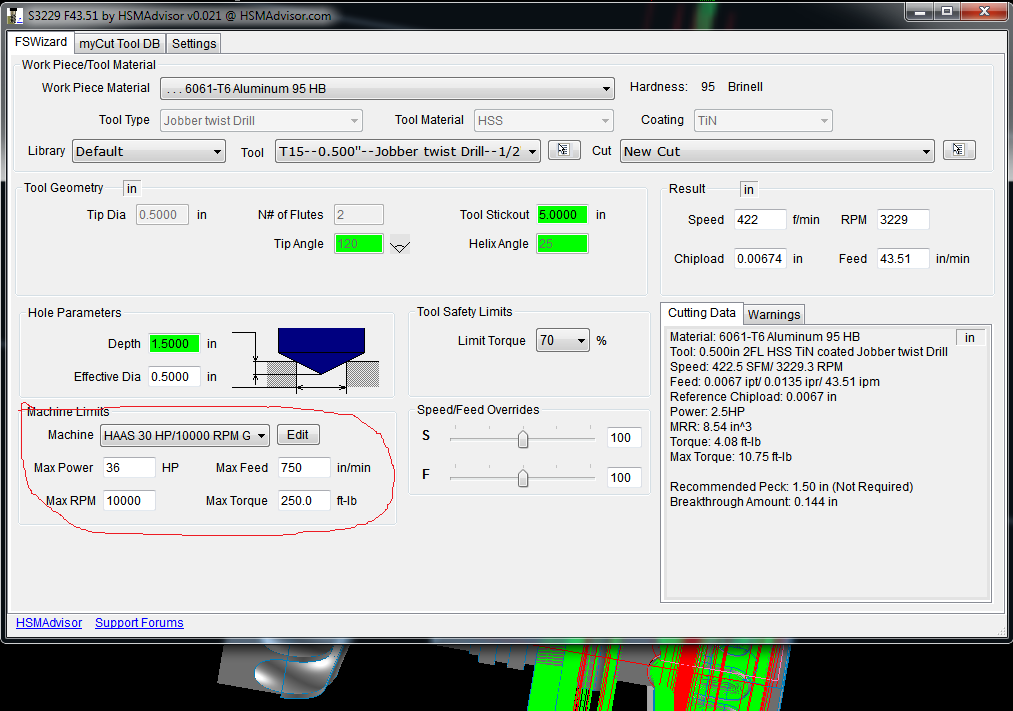

Machine Limits Maxhine Limits Group.png Settings to preserve Machine Limits Constant Machine Settings.png


March 23, 2013, 5:46 pm

Ah OK, that makes sense.



April 9, 2013, 9:05 am

The RPM not sticking has creeped back in Eldar :biggrin:


Eldar Gerfanov (Admin)

April 9, 2013, 9:02 pm

This issue has been too fixed in the latest v0.024.

Thanks for telling me.
