Hi,
When selecting a tool, the proposed chip load is twice the amount defined in the 'Custom Speeds and Feeds' for the tool, unless I lower the 'Feed Adjustment' to 50%. Why is that?
Thanks,
Serge
© 2009-2022 Eldar Gerfanov. All Rights Reserved.
© 2009 Eldar Gerfanov. Materials on this site are presented as is and are mostly for educational use.
You may freely reproduce information presented herein without any consent from me, provided you include link to this site.
In case when i am not the copyright holder, you may want to contact proper owner of material. Anyway, they are freely available on the Internet.
If you hold the copyright right for any of the materials on this site and want them removed, please contact me here
Eldar Gerfanov (Admin)
Hello,
I don't see this issue.
Can you attach the screenshots of your tool and cutting data set up?
Best regards.
User10807
The 10 mm tool has a chip load of 0.055 mm.

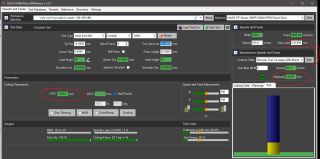

With 100% Feed adjustment:
With 50% Feed adjustment:
So, the question is why HSMAdvisor doubles the value by default?
Thanks,
Serge
Eldar Gerfanov (Admin)

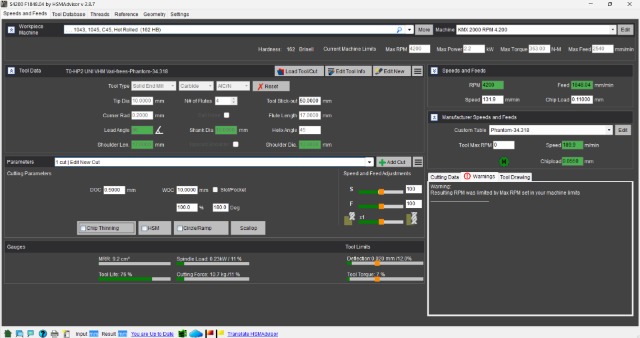

Can you please provide screenshot of the whole app?
User10807
Eldar Gerfanov (Admin)
Updated by: Eldar Gerfanov (Admin)October 23, 2025, 5:33 pm
Hello,
I got another update.
What happens is you have a very shallow depth of cut on soft material, so HSMAdvisor bumps up the feed rate by 100%
You can verify it by clicking on the DOC label to have is set a default DOC, which would give you the chip load you have entered in the "Manufacturer" table.
This is normal behavior.
Best regards.
