max. depth of cut for small diameters
I can adjust DOC and WOC in a certain range, but using very small tool diameters e.g. 0.5mm with 4mm length (12mm stickout due to the conical shape) in C18200 the numbers are incredibly small. E.g. a DOC of 0.5mm leads to 2% WOC, a DOC of just 0.1mm only to a WOC of 10%. I haven't practiced it yet, but it seems to be too pessimistic?
If I enable the slotting checkbox, the DOC field remains editable and I would assume that the F&S changes according to the DOC, but it seems to reduce to a certain fixed amount and doesn't react on changes. Apparently this happens when the tool is considered overloaded. I think that it should issue a warning about tool overload or set the feed to 0 as an indicator instead of some random low number?
My material should be rather C18000, not C18200. Any chance to get parameters for that? I think it is even harder than C18200 and the DOC would drop to zero, so maybe (I hope) there is an error for small diameter calculations?
Eldar Gerfanov (Admin)
Updated by: Eldar Gerfanov (Admin)
Hello,
It's hard to follow what exact setup you are having.
Can you attach a screenshot so i don't have to guess?
You can just paste directly from the snippet tool into the text box here.
ForumAutomation
Reported items logged in a new tracking issue: swindex/HSMAdvisor#141. It covers three points from your post: (1) DOC/WOC results appearing overly pessimistic for very small tool diameters (0.5 mm tool in C18200/C18000), (2) the slotting checkbox leaving DOC editable while F&S stops reacting to DOC changes when the tool is flagged as overloaded — a tool-overload warning and/or zeroing the feed is under consideration there, and (3) the request for C18000 material parameters. The issue is open; updates will be posted in this thread as progress is made. The requested screenshot would still help with point (1) — please attach it here if you can.
Thank you.
User10960
Hi,
thanks for taking care!

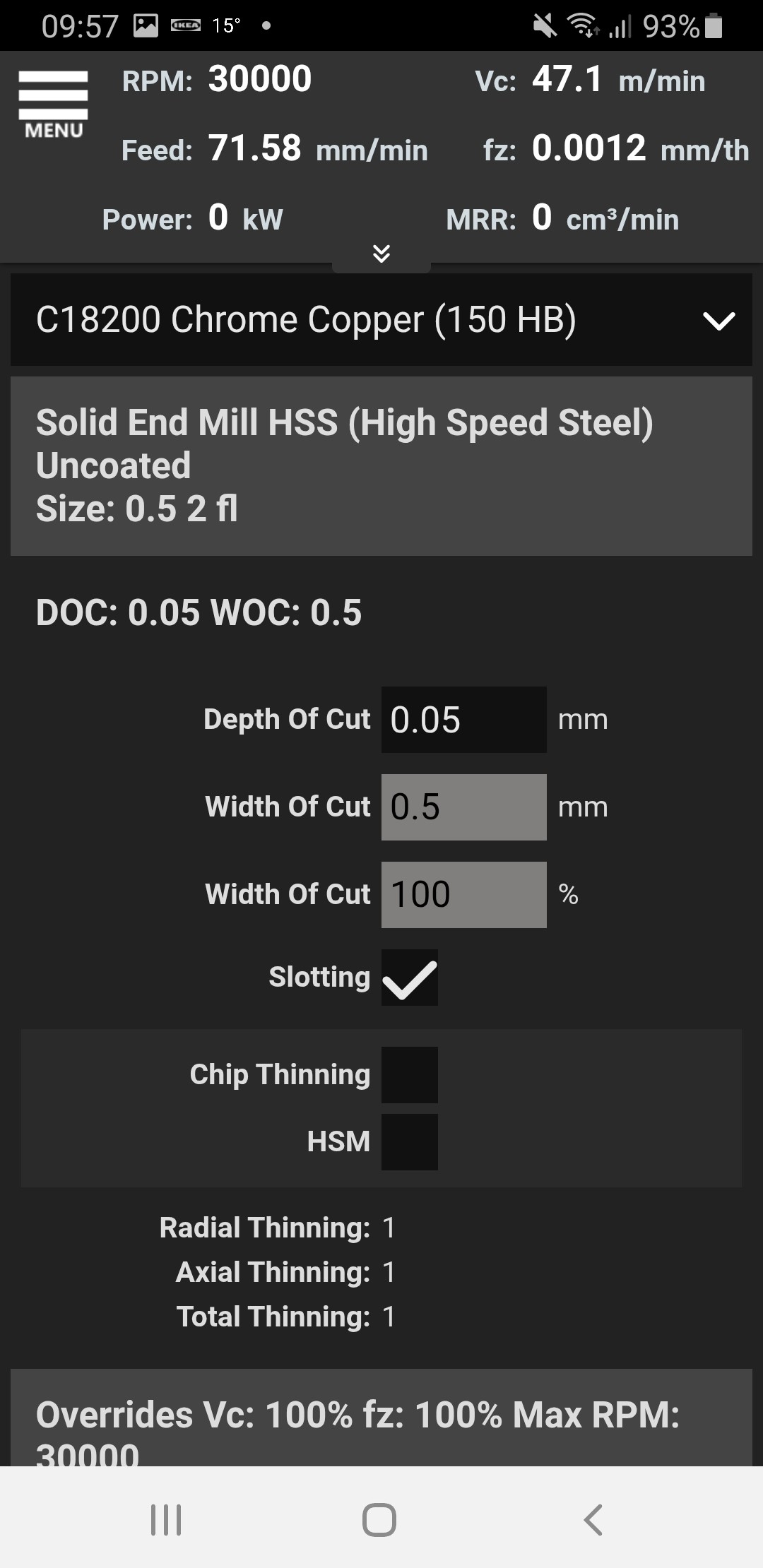

I tried to make a few screenshots and exported an URL..I guess that is the best way to reconstruct the settings?
From DOC=0.5mm to 0.02mm the feed doesn't change at all and doesn't indicate that this setting is apparently considered invalid. For 0.01mm and smaller it calculates other feeds.
I didn't test if that's the reason, but the stickout is 12mm due to a long conical change to the 1/8" shaft, while the actual 0.5mm flute is only 4mm long.
FYI: I think your repo is not public and therefore I can't access the issue link in your message. The forum email contained another link to this thread which also returned a 404:
"This thread is located at:
https://zero-divide.net/forums_xml?article_id=5459"
From comparison, the link contains the title in the id:
https://zero-divide.net/forums?article_id=5459_max-depth-of-cut-for-small-diameters
best regards
Eldar Gerfanov (Admin)
Hi,
Thank you for the screenshots.
I will investigate if there is an issue and fix accordingly.
Yes the coderepos are not public, but I insert the links anyway to make it easier for me to navigate back and forward between the private github and the public issues here.
