New user help with entering values

Hi,

I'm new to FSWizard and machining so please be patient if this is a stupid question.

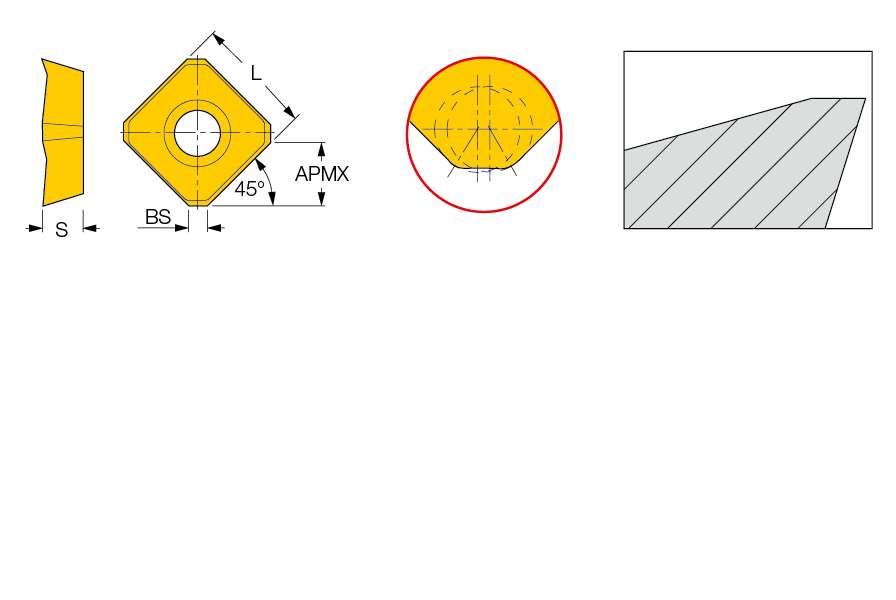

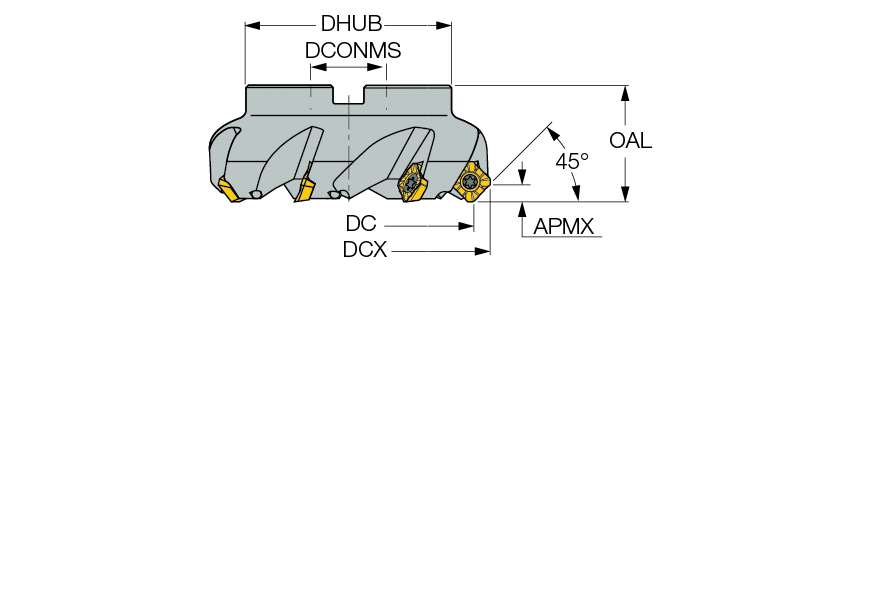

I'm using an ISCAR F45ST-D3.0-1.00 facemill with SEKT43-AF-R inserts.
Hopefully I've uploaded both the cutter and insert geometry.
Since the insert has a 0.252" flat (BS), is it a 90 deg lead angle or 45?
Also, the cutter seems to have a rake angle relative to the spindle (vertical). Do I need to account for this?

What should I enter for corner radius, flute length, helix angle and lead angle?

Thanks!!

Answers:

cant leave messages here

Pages:(1) [1]

Hi,

Sorry, i didn't have time to reply earlier,

Quote:

Since the insert has a 0.252" flat (BS), is it a 90 deg lead angle or 45?

It is a 45deg Lead Angle

Quote:

Also, the cutter seems to have a rake angle relative to the spindle (vertical). Do I need to account for this?

The Helix Angle field should handle that angle. But if you don't know the exact value, it is OK to leave that one default.

Quote:

What should I enter for corner radius, flute length, helix angle and lead angle?

In your case, the Corner Angle will be 0, Flute Length = APMX, Helixa Angle - the rake angle (if you can measure it) Lead Angle = 45deg

Please let me know if this answers your questions.

Also please check this help article for HSMAdvisor. It is for the desktop app, but the naming convention is exactly the same:
https://hsmadvisor.com/help?article_id=4432_entering-cutting-tool-geometry

You may freely reproduce information presented herein without any consent from me, provided you include link to this site.
In case when i am not the copyright holder, you may want to contact proper owner of material. Anyway, they are freely available on the Internet.
If you hold the copyright right for any of the materials on this site and want them removed, please contact me here
