By Blue_Chips
May 23, 2020, 2:26 pm
90deg Flat head screws only showing MM
Hi Eldar When selecting size only showing mm. Ken
Latest Responses
- Future sharing of work account
- Creating New Machine - Syil X7
- Using Circle/Ramp
- Tool Database/ Custom Tables Q's
- Request to add PU Epoxy Tooling Board density 45lb/ft^3
- Circle/Ramp can't select ramp plunging
- Add TiB2 coating?
- Ball endmill/surfacing example
- Drilling - Cutting Force is Broken
- The RPM seems to max out at 10,000
© 2009-2022 Eldar Gerfanov. All Rights Reserved.
© 2009 Eldar Gerfanov. Materials on this site are presented as is and are mostly for educational use.
You may freely reproduce information presented herein without any consent from me, provided you include link to this site.
In case when i am not the copyright holder, you may want to contact proper owner of material. Anyway, they are freely available on the Internet.
If you hold the copyright right for any of the materials on this site and want them removed, please contact me here
Eldar Gerfanov (Admin)
Hi, You need to use in/10mm switch in the top right corner. See screenshot
Blue_Chips
Eldar, I had tried that, same thing. Took a screen shot but cant find it LOL. whether in or mm is selected it shows only mm. Android mobile phone. Ken
Blue_Chips

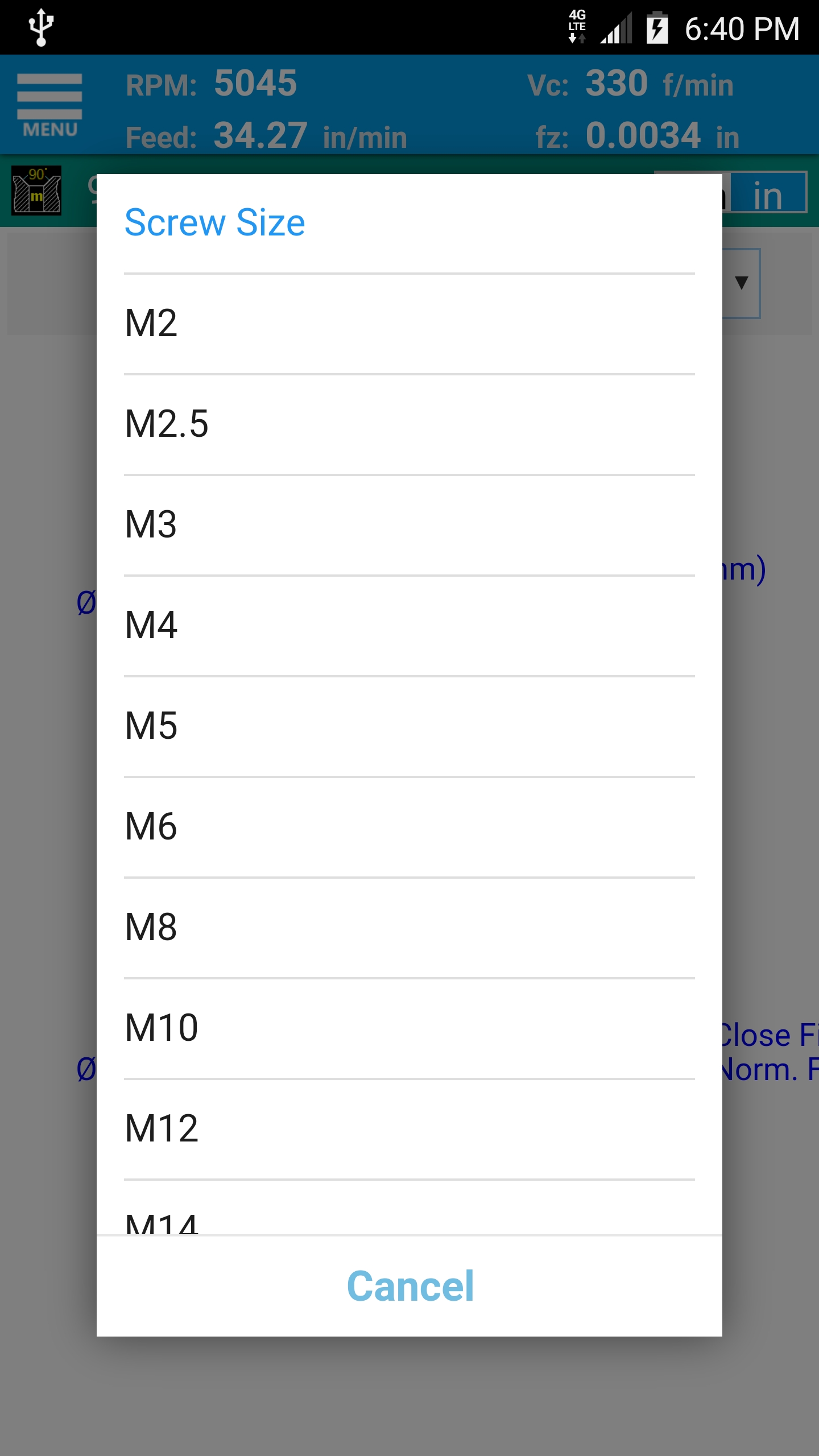

Found it under screenshots, imagine that. you can make out that IN is selected
Eldar Gerfanov (Admin)
So it shows 10mm when no size is selected? Hmm. Not really an issue in my opinion because it does not affect the actual data. Will fix that in the next update.
Blue_Chips
Eldar, I'm not sure where your mention of 10mm came from. It's only an issue when you want to select inch screws :) Select 90deg flat head Select inch mode Select screw size Selection of screws is only Metric.
Eldar Gerfanov (Admin)
Ahh I get it. You are looking for inch screws in 90 degree FHS drop-down! As far as I am know standard 90 deg FHS are always metric. There is no imperial chart anywhere.
Blue_Chips
That explaines it, could have sworn what I had was 90 degree, but they are 82 degree. Sorry for wasting your time :(
