Pretty simple question- How do I handle WOC & DOC when I am using tools that make angled cuts when the tool is oriented normal to the work piece(i.e. chamfering, single point threadmilling, etc...) I am trying to single-point threadmill a 1/2- 13 hole but don't know where to start on DOC/WOC/# of passes. Thanks!
© 2009-2022 Eldar Gerfanov. All Rights Reserved.
© 2009 Eldar Gerfanov. Materials on this site are presented as is and are mostly for educational use.
You may freely reproduce information presented herein without any consent from me, provided you include link to this site.
In case when i am not the copyright holder, you may want to contact proper owner of material. Anyway, they are freely available on the Internet.
If you hold the copyright right for any of the materials on this site and want them removed, please contact me here
Eldar Gerfanov (Admin)

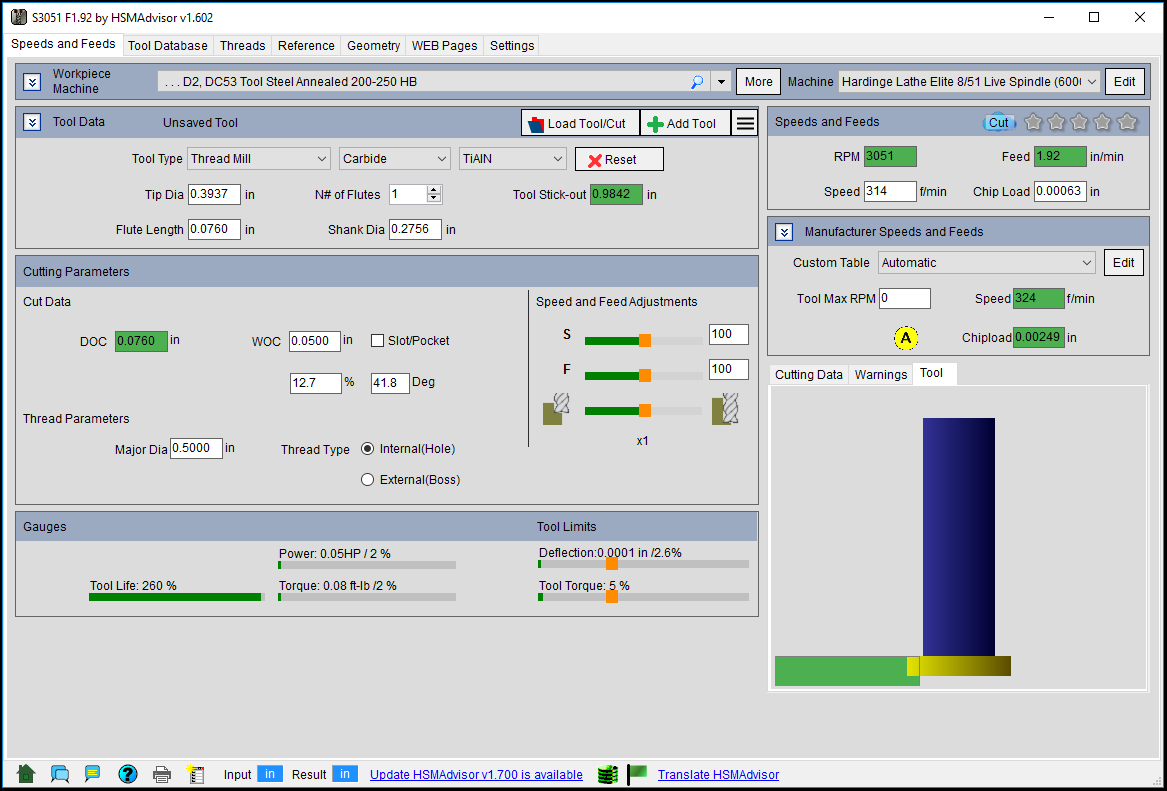

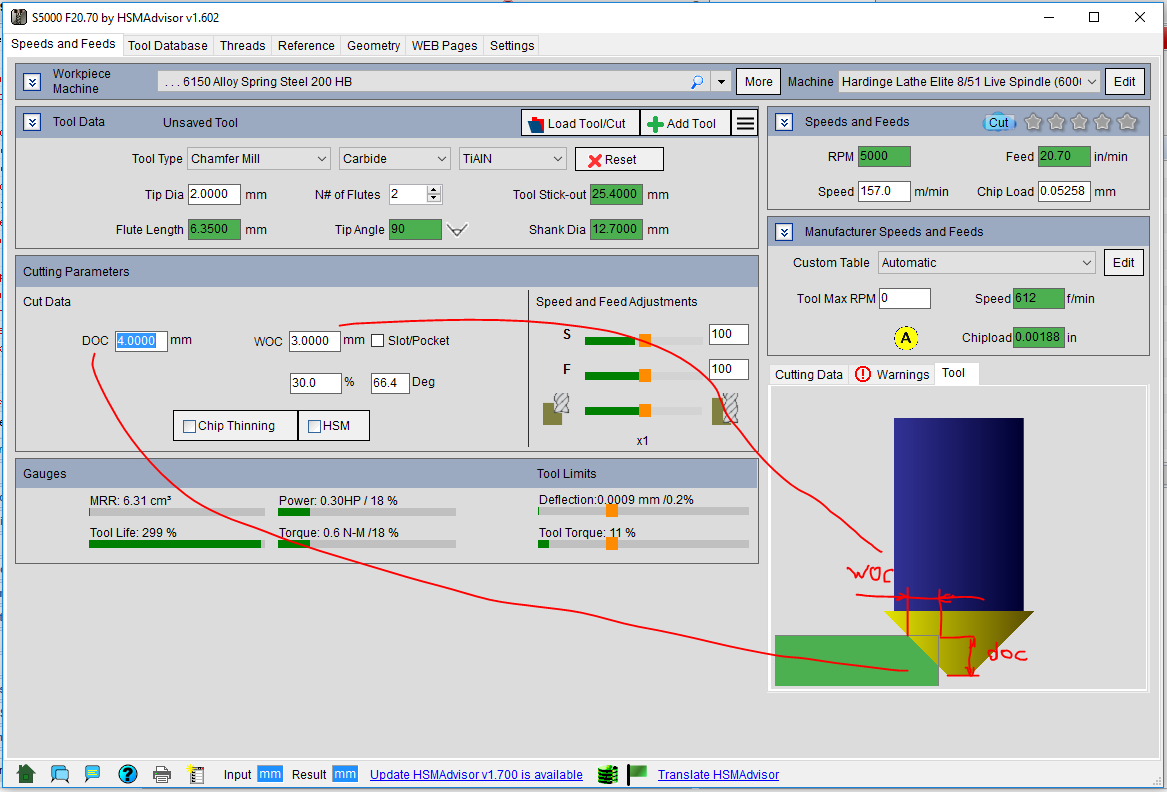

Hello, The chamfer mill is unique in it's handling of DOC and WOC. Doc there is considered the distance from the tip of the cutter to the to edge of the work piece. WOC is the actual width of the chamfer. See screenshot #1 For a Thread mill: DOC is the depth of teeth engagement. For single point threading it will equal the pitch of the thread. WOC is the width of pass. It is usually about 70% of the pitch value. See screenshot #2 Best regards.
TheWolfOfWalmart
Exactly what I needed. Thanks Eldar!
