By JBC
November 1, 2015, 9:47 am
DEWALT DWP611 1.25 HP
Anyone have a Machine Definition for the DEWALT DWP611 1.25HP Router?
No snickering please. It's my CNC tool in my shop and I'm proud of it :cool:

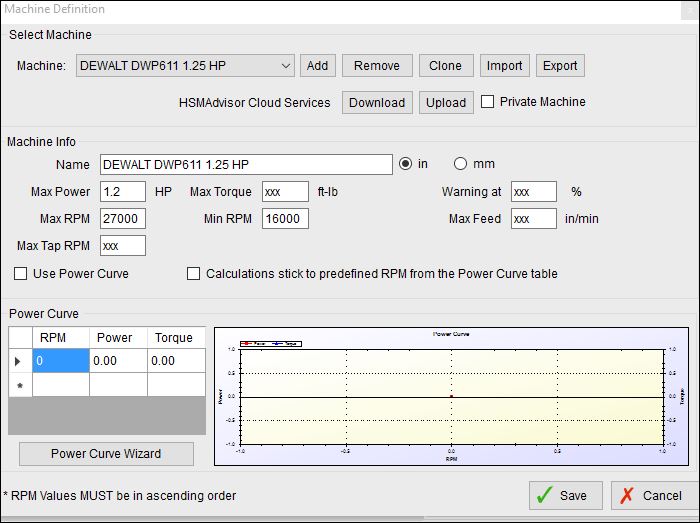

This screen capture shows 'xxx' where I don't have the info for the router.
I've unsuccessfully searched for the info at Dewalt and searching Google.
Any help would be appreciated.
jbc
Dewalt 611 Profile
Eldar Gerfanov (Admin)
Hi,
It is easy to calculate that.
Just focus on the second line in your Power Curve tale and enter the max RPM. Then enter the Max HP and in the third column it will display the max torque.
Your Warning At should be 95
Max feedrate should be the maximum allowed feed for your machine. If you don't know or don't care just set 1000 ipm
And Tapping RPM can be 0.
Then you can also check "Enable Power Curve" and save the changes.
I will upload this machine to the cloud later tonight when I get back into town.
JBC
Thanks.
I set all as you instructed.
I did not 'enable power curve' as that asked more than I can answer.
JBC
Eldar, when you say 'upload to the cloud' is that how you get the machine settings to appear on different computers?
I spent some time in my office playing with the machine settings and other stuff only to see the Dewalt611 not in my machine list in the garage where I run my CNC machine.
Eldar Gerfanov (Admin)
I spent some time in my office playing with the machine settings and other stuff only to see the Dewalt611 not in my machine list in the garage where I run my CNC machine.
Yes. Use Upload Machine button to upload it. It will ask you to register.
And then use Download button to connect to the cloud and download it.
Obviously internet connction is required for this.
Othervise use Export/Import buttons to transfer machines as files using a USB stick.
