FSWizard Online is:

FSWizard is here

It is the most accurate Online Feeds and Speeds Calulator.

In order for every user to enjoy latest modifications and most accurate results, it is WEB Based.
This means that you can use it across all imaginable operational systems and devices.
All you need is an internet connected WEB browser.
No download or installation is required: Just visit the web page.

Also a full functioning mobile version is available.

Key Features of FSWizard:

G71 X Z A|I B D U H L E F J M Q

• D=First Depth of Cut
• U=Finish Depth of Cut
• J=Number of threads at F
• X=Target Depth (minor Dia of theread)
• Z=Coord of end Point
• A= Angle of thread
• B= Tool Cut angle
• H= Difference between major and minor dia of the thread
• M= Cut pattern
• M32= Longitudal
• Q= Number of leads

Note: Feed mode must be in G95(IPR)

Out Company used to have somebody else plasmacut cutting anvils for us.
This was expensive, plus heat generated by plasma caused already unstable anvils to warp like crazy making them very hard to grind flat.

So when foreman told me to machine one on CNC i immidately asked him to buy one of those nifty Hanita TiALN coated Varimill cutters.
Too bad they are too expensive. So the company bought same style of cutters made by Niagara. 0.5" end mill there is x3 cheaper than hanita's. Plus i believe cutting tools made to the same specs, out of the same materials are performing identical.

The machine we ve been using for this is really shaky and busted, so dont laugh at speeds and feeds that we came up with.

So basically, Specs Are:

• Material: Hardox pre-hardened steel Rc 45-50
• Cutter: 4 Flute, Stagger Flute TiALN coted 0.5" Micrograin Carbide End Mill, 2.5" Overall, 0.625" Flute Length, 1" overhang
• Operation: Slotting
• Speed: 1200 RPM
• Feed: 4.8 IPM
• Depth OF Cut: 0.125"
• Plunge method: 2.5 Deg Ramp/Helix, Or Plunge into 0.281Dia pilot hole at 3 IPM
• Coolant: Airblast + Oil

Lately we've been doing alot of anvils out of 3/8 or 1/2" Hardox steel (Rc 45-50)
Aside from having to machine profiles and pockets we also have to drill some mounting holes.

Here are the speeds and feeds for supercobalt minicut end mills.

Here is a list of Okuma G and M codes i got from the manual

Note Some codes may not be supported by your machine, all information is given as is and i dont give a ... if you break something.

Information given here is correct to the best of my knowlege

If you want OKUMA Lathe to repeat program several times you can use a subprogram or a conditional GOTO statement.

On Many Okumas subprograms is an option you have to buy, so we have to use GOTO statement.

Thats it

This little code helps alot when using bar feeder and stuff like that.

If you are finishing a pocket with wall corners' radius close to the radius of a cutter. The tool tends to chatter, especially with longer tools and harder materials.

To avoid this you can do one of the following:

• When programming. After roughing the pocket and before finishing. Create a simple drill cycle with finishing tool to remove extra material from the corner. This way when finisher goes to the tight corner, the chatter will virtually disappear.
• Do the same with a drillbit. Before Roughing.

Hanita Varimill II Speeds and feeds Table

Plus Ordering information

What are Machining Speeds and Feeds

One of the basic tasks a machinists must learn to perform is calculation of speeds and feeds required for milling, drilling and turning.

It starts from knowing your workpiece materiel and tooling you are going to use in order to cut it.
The combination of these two factors determines your initial Cutting Speed and Chip Load that you can put into the speed and feed formulas to calculate the cutting tool RPM and feed rate.

Cutting Speed is the speed at which the tip of the tool travels through material. It is commonly expressed in Surface Feet per Minute (SFM) or Surface Meters per Minute (SMM).

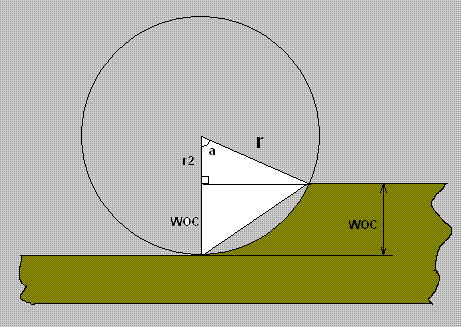

Chip Load is the advancement of each tooth per revolution of the tool.

In other words Chip Load is the thickness of the material that each tooth removes per each revolution.

So how do you find the Cutting Speed and Chip Load for your tool?

Tool manufacturers often post Cutting Speeds and Feeds for their tools for various materials and cutting conditions.

Most experienced machinists simply remember cutting speeds and chip loads for materials they machine most often.

Here are commonly recommended cutting speeds and chip loads for carbide tools for a couple of materials:

• Aluminum: 300SFM, 0.7% of the diameter (for example fz = 0.5"dia x 0.007 = 0.0035in/tooth)


• Annealed Tool steel: 150SFM, 0.4% of the diameter (for example fz = 0.5" x 0.004 = 0.002in/tooth)

When you have manufacturers data simply find your tool in the catalogue and cross-reference the cutting speed and chip load against the tool diameter:

Since cutting speeds can be in either Imperial (SFM) or Metric (SMM or m/min) units, you have to use two formulas to calculate the RPM.

Imperial Speed and Feed Calculation

Metric Speed and Feed Calculation

Want something better?

Try our desktop  HSMAdvisor Speed and Feed Calc or Mobile/Online FSWizard

More about formulas needed to calculate turning, drilling, and of course milling speeds and feeds

Here are a few basic formulas with term explanations to get you going:

Calculating Spindle Speed (RPM) Using Imperial Cutting Speed:

Calculating Spindle Speed (RPM) using Metric Cutting Speed:

Calculating Feed Rate :

Feed_Rate=RPM x N(teeth) x CL(chip load)
