It only recently occurred to me that since the introduction of the Fusion 360 Tool Library import feature, HSMAdvisor users can import all kinds of libraries designed for F360!

Thanks to the popularity of F360, many tool manufacturers offer their stock in Fusion format.

You can see and download them all from here:
https://cam.autodesk.com/hsmtools

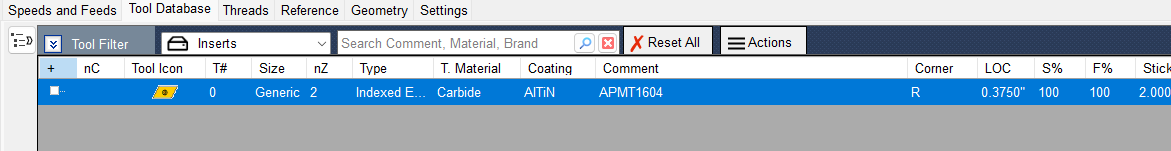

You can download and import the .hsmlib file you need into HSMAdvisor using the Tool Database ->Actions->Import->Fusion 360 menu.

For example, Harvey offers F360 Tool Libraries for all of their tools over here:
https://cam.autodesk.com/hsmtools?p=%20Harvey%20Tool&utm_source=Pardot&utm_medium=Redirect&utm_content=Harvey_Fusion&utm_campaign=CAM_Tool_Libraries

I tried it with their endmill database.

It is huge, contains about 16 thousand tools, and rendering all of them on the same page takes about 10 seconds on my computer.
It is not too bad, though, since you can use filters to limit the number of displayed tools and find the one you need faster.

Perhaps I should include the ability to download them directly into HSMAdvisor without having to go to the web site?

Let me know what you think about it!
